|Light Output||1,500 Lumens (Per Light)|
|Power||20W @ 13.6V DC|
|Current||1.5A @ 13.6V DC|
|Voltage||10 - 36V DC|

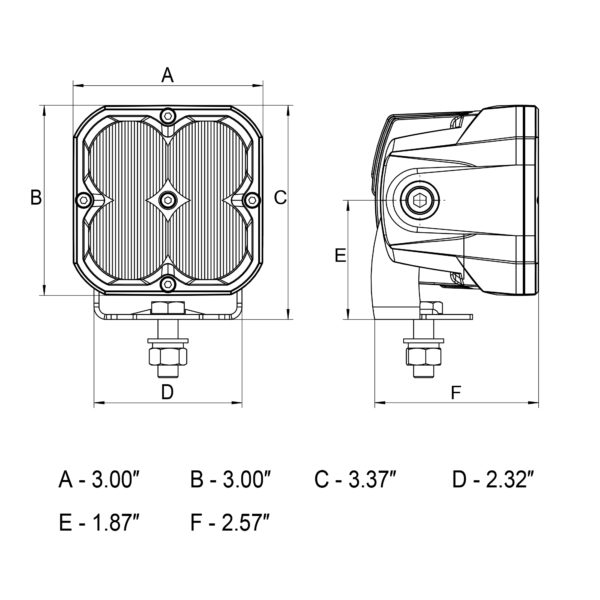

|Dimensions||3.0” x 3.0” x 2.6”|
|Beam Pattern||Driving Beam|

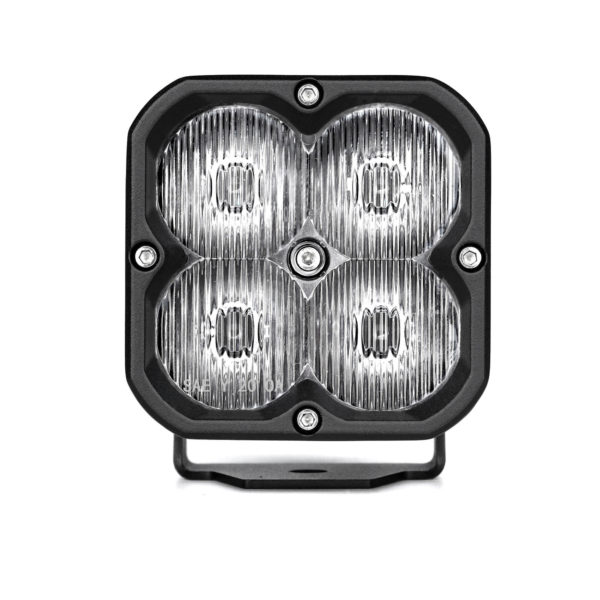

Concept Series Pod, 3” Cube LED Pod Lights, Driving Beam, U Mount – 41022
MSRP $185.10 USD
Cutting edge performance starts with cutting edge technology. To achieve precision beams that meet demanding SAE standards, our new street-legal Concept Pods are equipped with automotive-grade Osram OSLON LEDs and TIR projector lenses. These LED performance light pods are designed to be as slim and compact as possible so that they can be installed anywhere on a vehicle for improved visibility and safety on the road. All Concept Pods are SAE certified for use on any roadway in the USA.
Projector optics with Osram automotive-grade OSLON LEDs
SAE certified for use on any roadway in the USA
Designed for high performance in different driving conditions
COMPACT + VERSATILE:

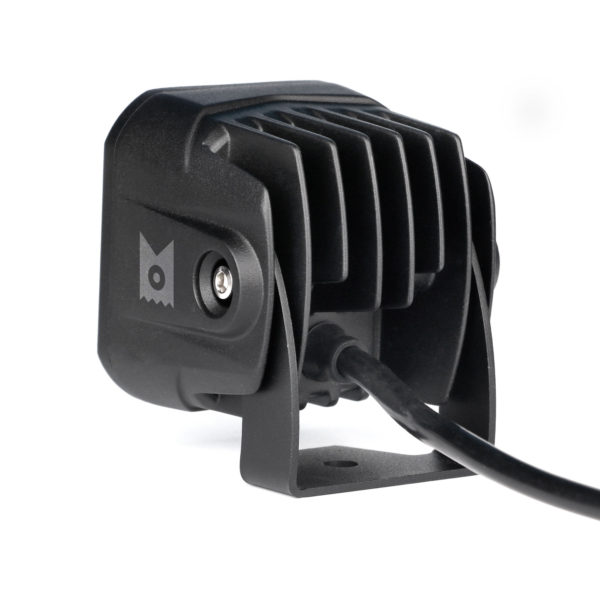

Slim chassis with various mounting options
2 x Cube LED Pods

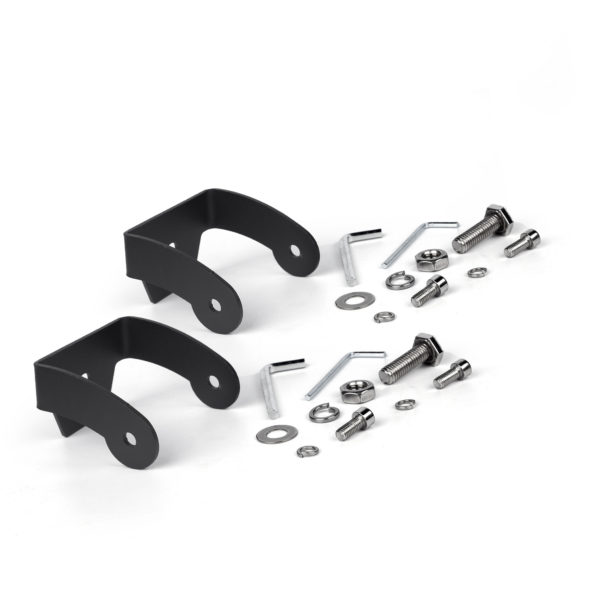

2 x U Mount Brackets

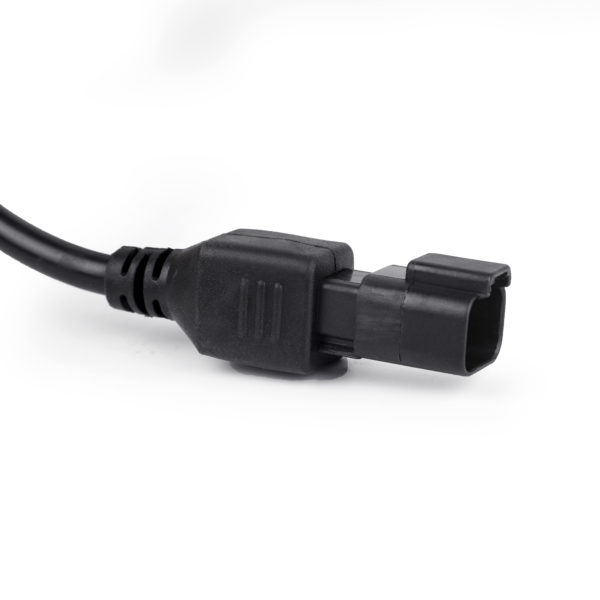

Wiring Harness Sold Separately (SKU#:84002)
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.Download User Manual
If you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
What are the differences between driving beam, fog beam, and Flood beam?
Is the wiring harness included?
Are there a pair of lights included in a kit?
Where do I find installation instructions and other technical information?
ARC Lighting provides a 3 (three) year warranty on all products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
Read the ARC LIGHTING WARRANTY POLICY
