| Patterns | 23 Flash Patterns |
| Voltage | 12~24 V DC |
| Avg. Current | 15A @12V DC / 3.2 @ 24V DC (varies with flash pattern) |
| Avg. Power | 70 W (varies with flash pattern) |
| Max. Current | 15A @12V DC / 2.5A @24V DC |
| Max. Power | 120 W |
| Wires Length Light Bar to connector | 13 Feet |
| Recommended Fuse | 30 Amps |
| Colors | Amber and White |
| Colors | Dual Color (Amber & White/Blue/Green) |
| Working Temp | -40°F to + 149°F |
| Weatherproof Rating | IP69K |
| Dim | 1.8” H x 8.7" W x 15" L |
| Connector(s) | Circular Waterproof Connector |
| Material Type (Lens) | Ultra-strong UV stabilized polycarbonate lens |
| Material Type (Body) | Cast Aluminum Housing - Powder Coated Black |
| Material Type (Hardware) | 304 Stainless Steel |
Work Bar Strobe 51, Dual Color Mini Light Bar 51 Inch, SAE Class I, Amber/White (1EA) – BB6105B
MSRP $999.00 USD
BUILTBRIGHT® Work Bar Strobe 51 is a modern low profile design witha strong all alumium housing. This product meet SAE J845 CLASS I standard, IP69K, EMC R10 approvals and comes as standard with twenty three single color flash patterns or fifty four dual color flash patterns.
The Work Bar Strobe 12 comes with a remote control panel with a halo ring that shows the flash patterns on the go. Optional hardwired digital switch options available. Interchangeable LED module makes it customizable and serviceable. The Work Bar Strobe 51 is designed tough enough for a fit-and-forget-it purpose and has a 5 year warranty.
- Meet SAE J845 CLASS I,ECE R10 Requirements
- 12 and 24 V DC compatible
- Sleek modern low profile design with advanced optics
- Dual color amber and white
- Twenty Three selectable flash patterns in single andfifty four in dual color mode
- Non volatile dual memory recalls last flash pattern
- Integrated traffic directional lights
- Integrated cruise and flood mode
- Comes with remote control panel

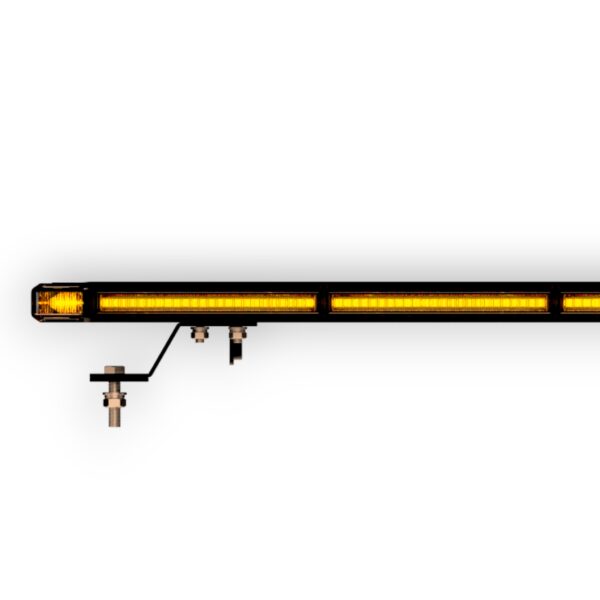

- Permanent mount bracket included
- LED Lifespan of up to 100,000 hours
- Weatherproof IP69K rated
- 5 year warranty
- 1 LED Light Bar
- 1 x Remote Control
- 2 x Permanent Mount Brackets and Mounting Hardware
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.
Download User ManualIf you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
ARC Lighting provides a 5 (Five) year warranty on all BUILTBRIGHT® products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
