|Light Output||10,000 Lumens (per kit)|
|LEDs||High Output LED Chipset|
|Power||45W per bulb|
|Current||3.0A at 13V DC per bulb|
|Voltage||9 – 16V DC|
|Beam Angle||360° Degrees|

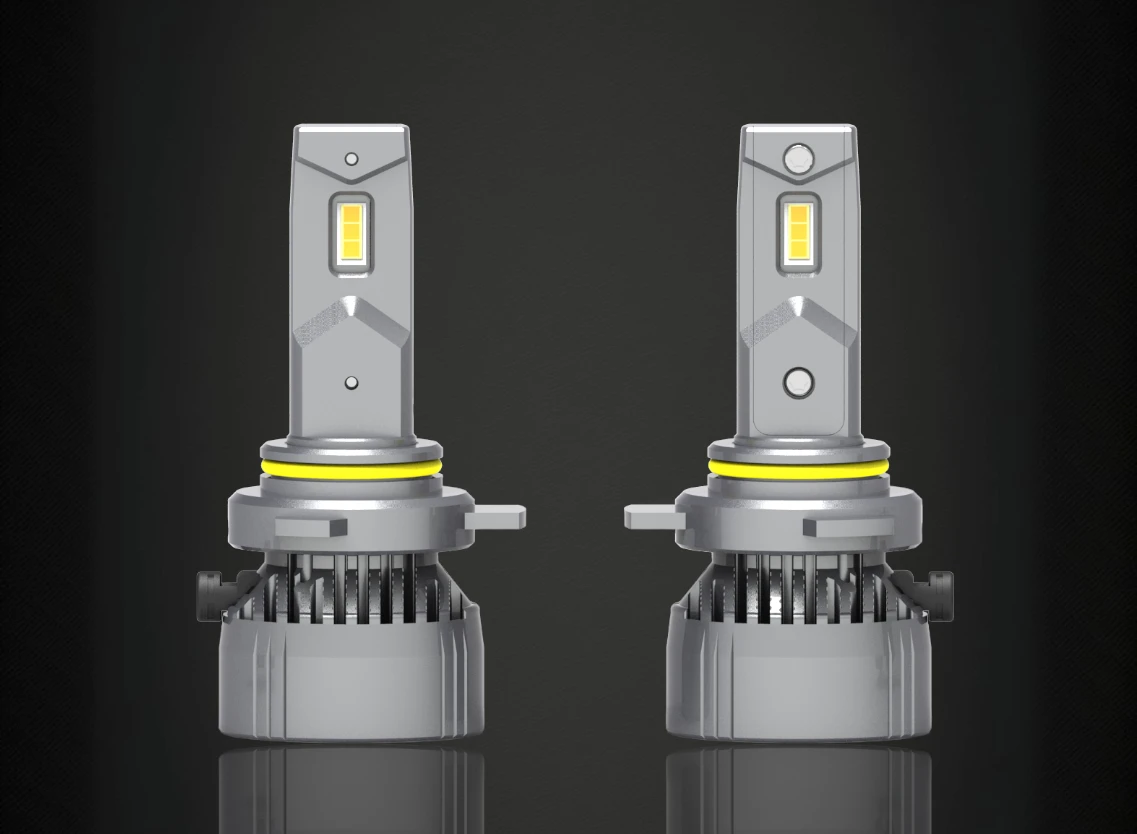

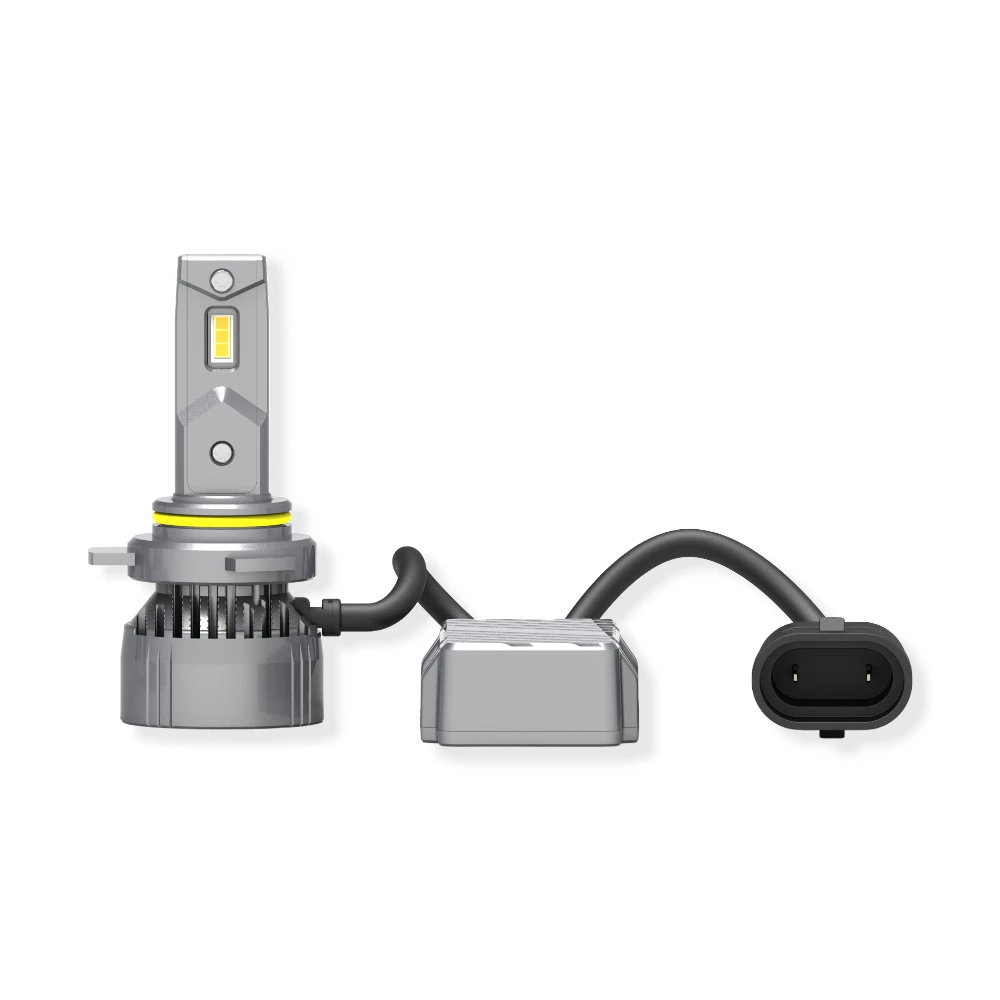

Xtreme Series 9012 LED Bulb Kit – 22121
MSRP $204.99 USD
The Xtreme series LED bulbs use automotive grade LED chips that are paired with patented cooling technology. That makes the Xtreme series some of the brightest LED bulbs on the market which routinely outshine most 35W HID systems.
Bulky fan cooling systems are history. The Xtreme series cooling fan has been designed to be as compact as possible to match the stock bulb in order to fit in even the tightest spaces! Get the Xtreme series and you won’t be in the dark again.
Extreme Brightness: If you are looking for the brightest monster of all it’s our Xtreme series LED headlight bulb. The Xtreme Series bulbs can produce up to 5X the light output of stock halogen bulbs and are brighter than a 35W HID system.

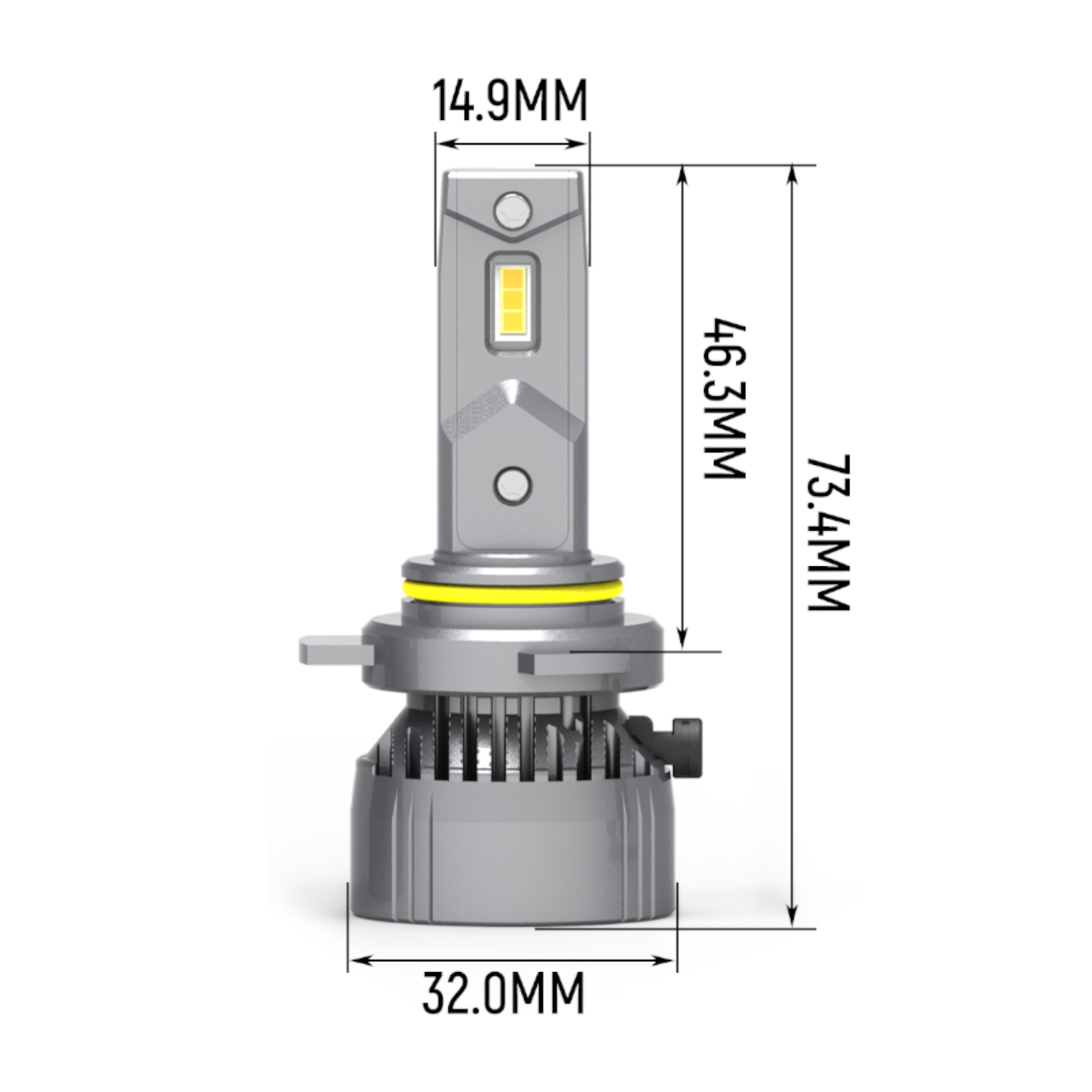

Fitment: LED bulbs with the fan based cooling system are known for being bulky and do not easily fit inside headlight housings with a dust cover. The Xtreme Series are designed to be as compact as the stock bulb to fit even in the tightest spaces! They are compatible with most reflector and projector housings.
Efficiency: The patented VacPipe™ vacuum heat pipe cooling technology is the core of thermal management. The vacuum liquid heat pipe pulls produced heat from the circuit board 3X more efficiently than a conventional heat sink design.

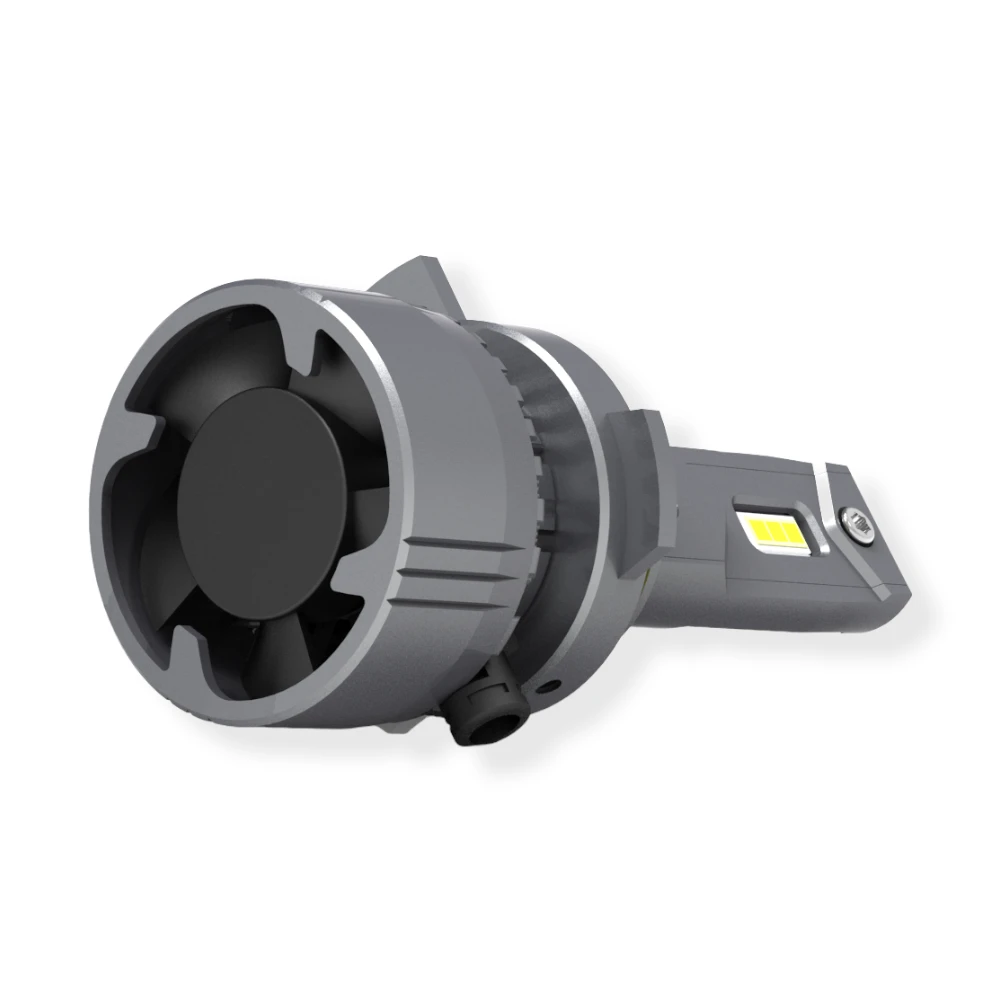

Reliability: TurboCool™ system is managed by using an enclosed, waterproof, high speed ball bearing turbofan. SmartDrive™ advanced temperature regulation ensures the longevity of the cooling system and helps the Xtreme LED bulbs avoid premature failures consistent with other fan cooled LED bulbs.

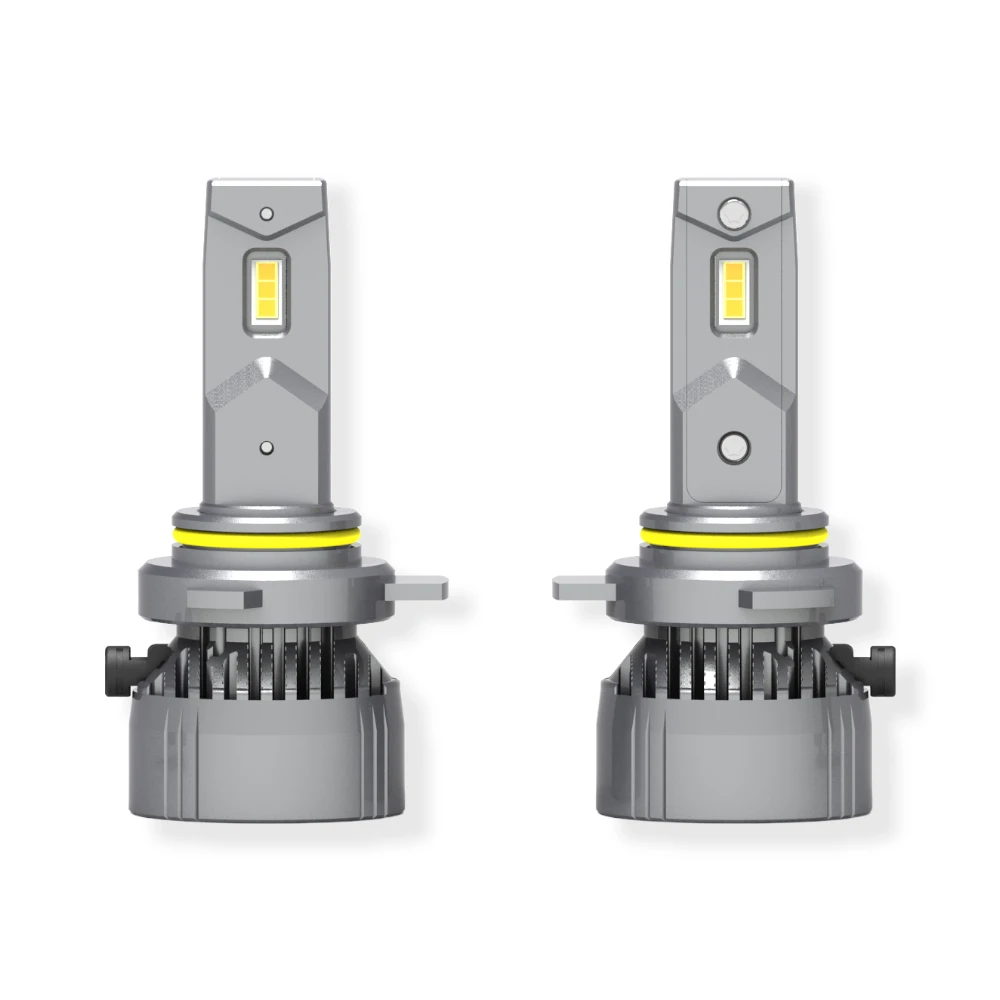

2 High Power LED Bulbs
1 Adjustment Tool (where applicable)
1 Instruction Guide
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.Download User Manual
Showcase Of Installation Material
If you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
ARC Lighting provides a 2 (two) year warranty on all products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
Read the ARC Lighting 2 Year Limited Warranty
