Compliance: SAE J845 CLASS I, California Title 13 and R10
LED Count: 144 pcs
Patterns: 78 Flash Patterns
Voltage: 10~30 V DC
Avg. Current: 5.5A @12V DC (varies with flash pattern)
Avg. Power: 70 W (varies with flash pattern)
Max. Current: 6A @12V DC
Max. Power:76 W

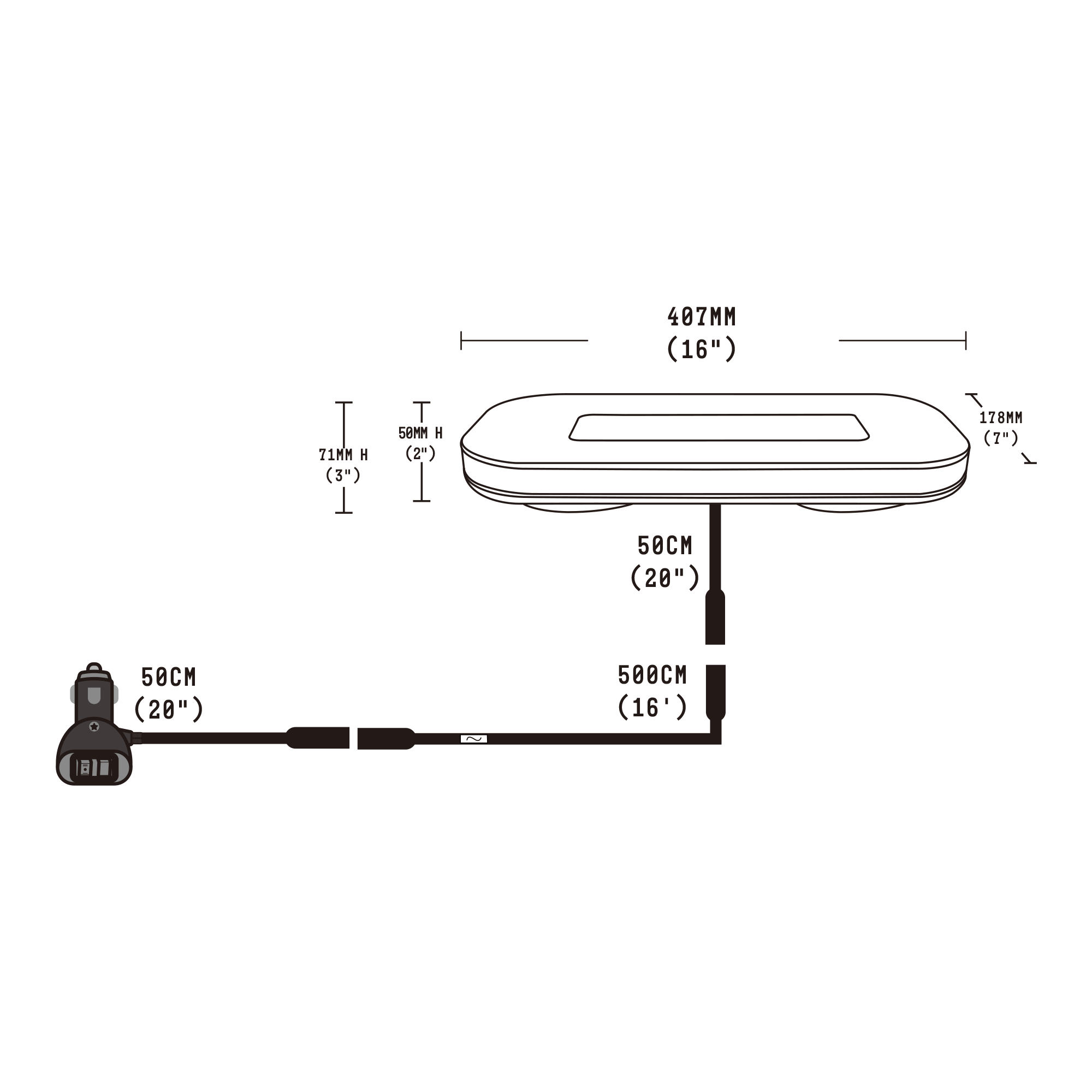

Wires Length Light Bar to connector: 13 Feet
Wires Length Connector to cigarette-plug: 5 Feet
Recommended Fuse: 10 Amps
Lens Color: Clear
LED Color: Amber & White
Operating Temperature: -40°F to + 149°F
IP Rating: IP69K
Dim: 1.5” H x 7″ W x 15″ L
Connector(s): Circular Waterproof Connector
Material Type (Lens): Ultra-strong UV stabilized polycarbonate lens
Material Type (Body): Polycarbonate
Material Type (Hardware): 304 Stainless Steel
Warranty: 5 Year

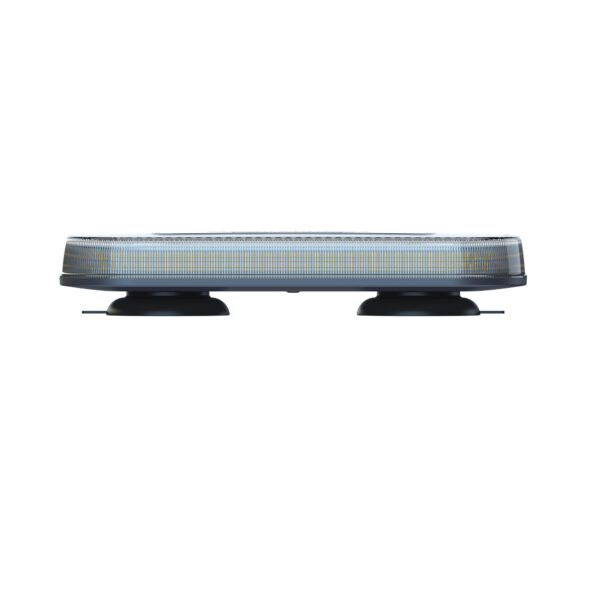

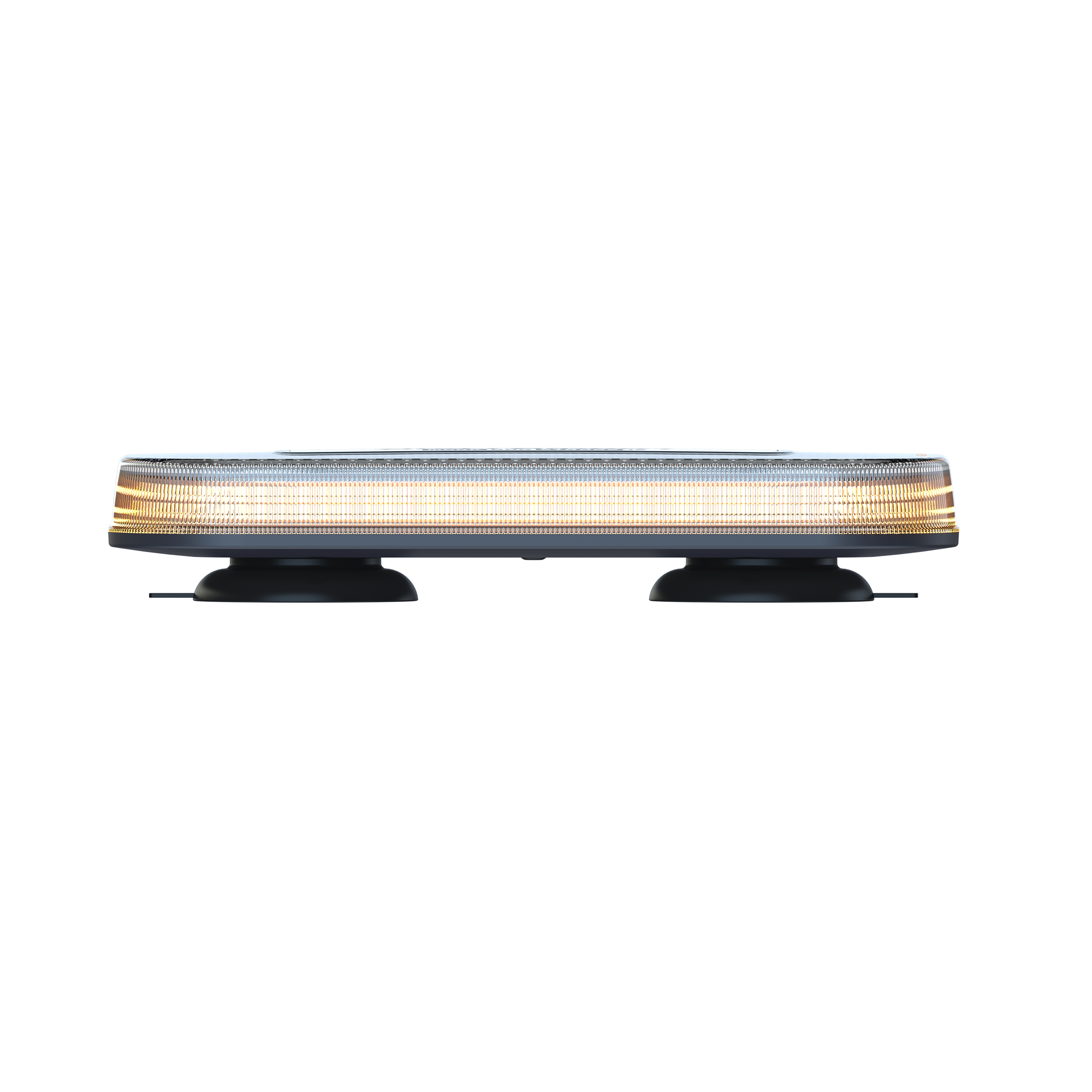

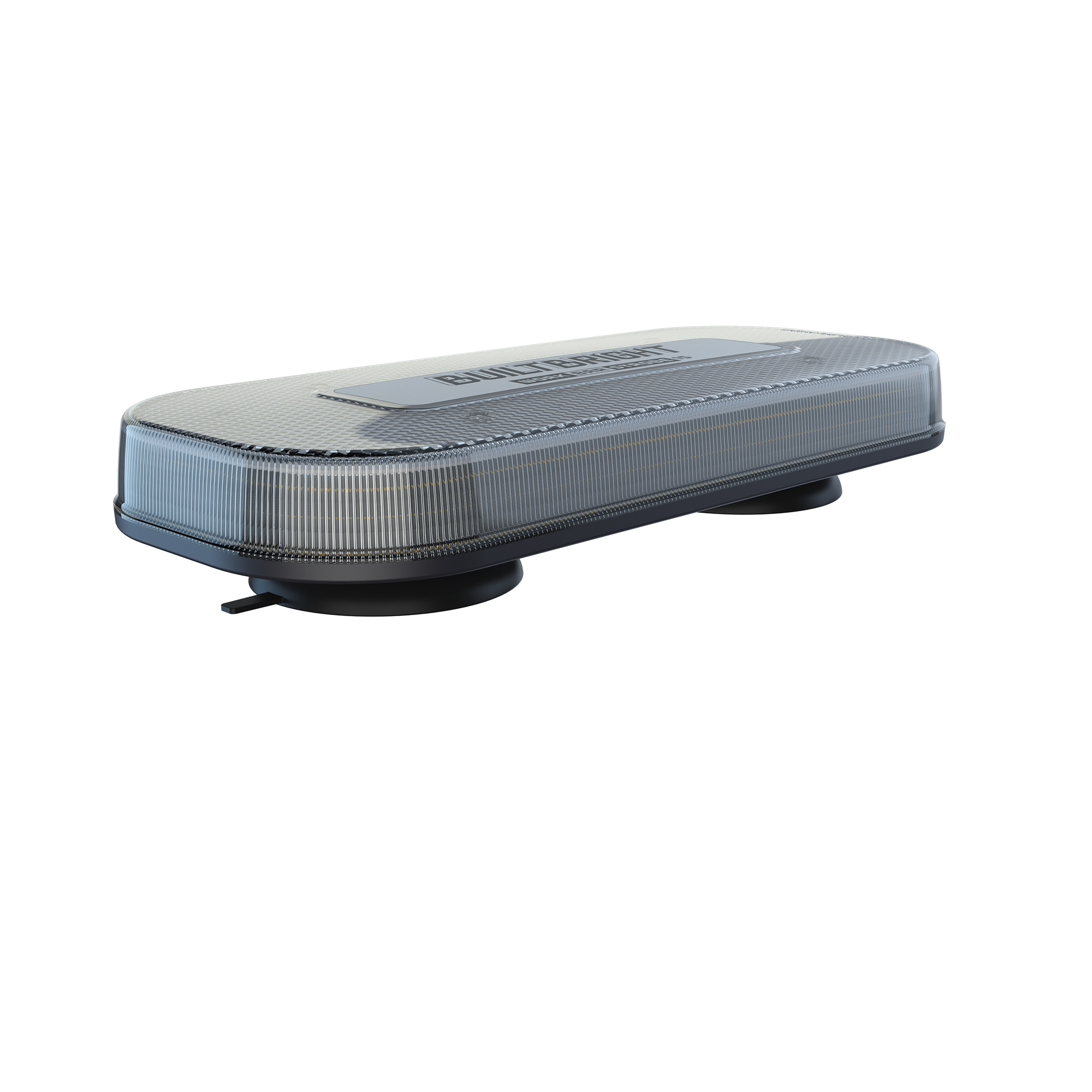

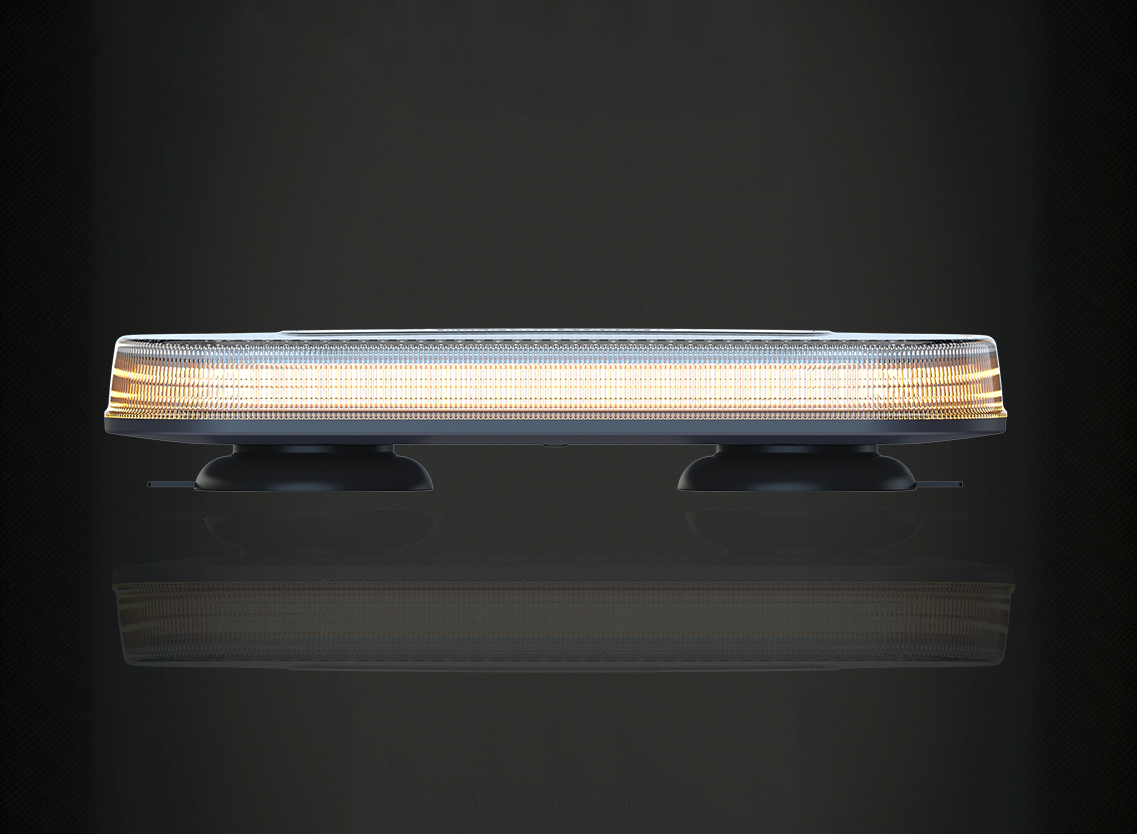

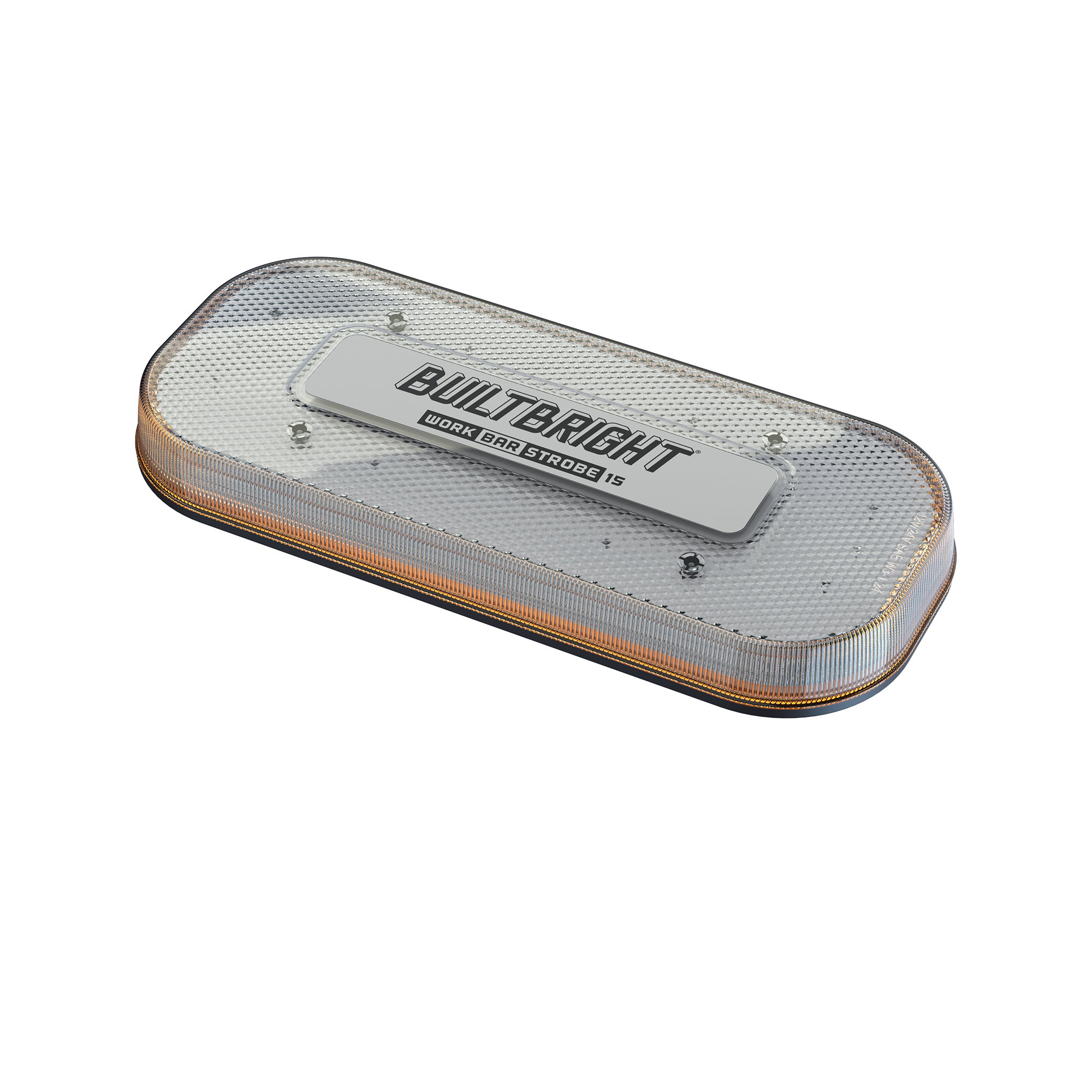

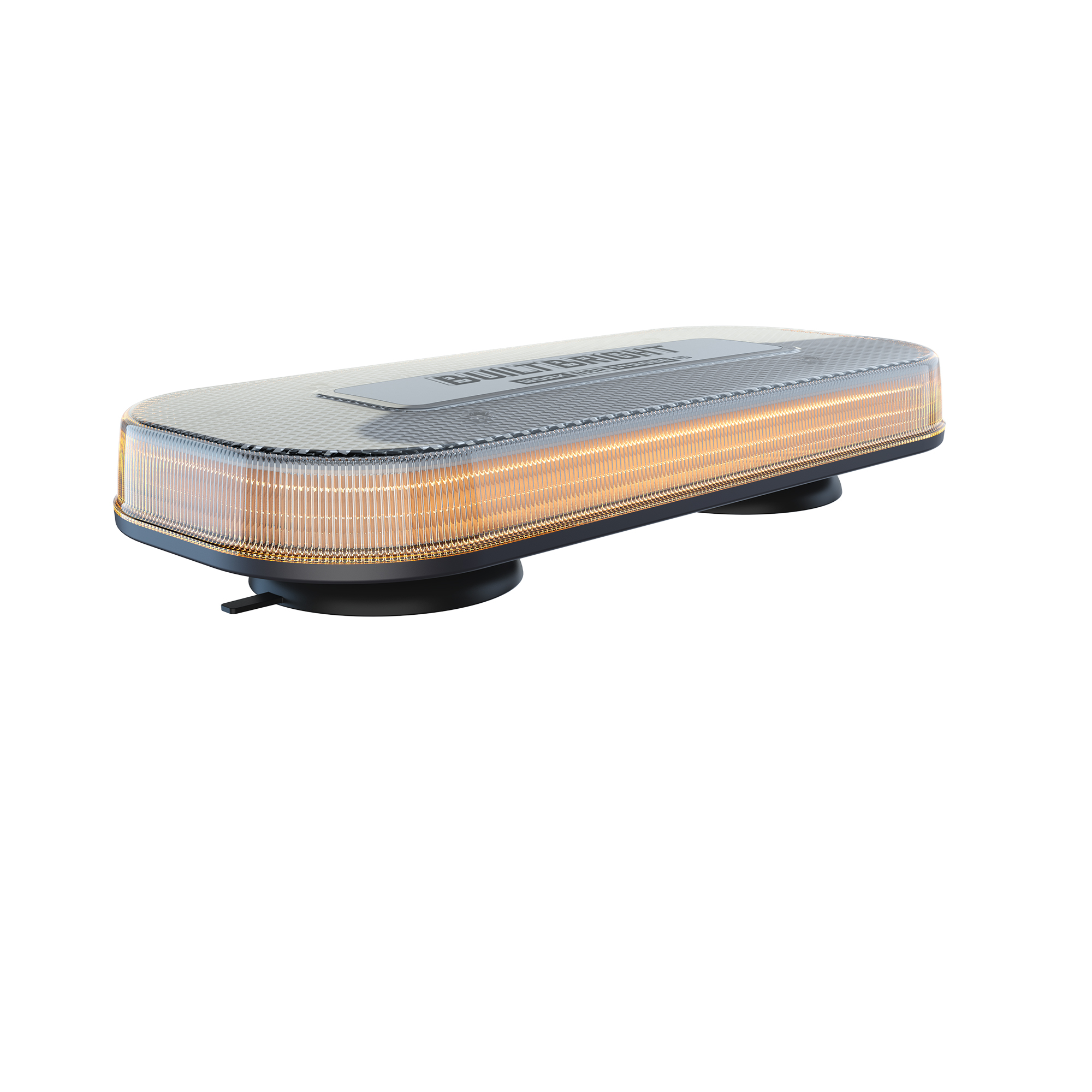

Work Bar Strobe 15, Mini Light Bar 15 Inch, Amber/White (1EA)-BB6011B
MSRP $257.99 USD
BUILTBRIGHT® Work Bar Strobe 15 is a designed to incorporate a compact sleek design with the ultimate light output to meet SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with 78 flash patterns including flood strobe split and full flood pattern. It features ultra bright latest generation LEDs under an all new wide diffused lens with dual color options.
The Work Bar Strobe 15 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with a cigarette plug switch and permanent dash mount switches making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 15 is designed tough enough for a fit-and-forget-it purpose and has a 5 year warranty.
● Meets SAE J845 CLASS I, California Title 13, EMC R10 Requirements
● 12 and 24 V DC compatible
● Sleek modern low profile design with 360º diffused lens
● 360° strobe in white, amber and dual color
● 78 selectable flash patterns
● Integrated cruise and flood mode
● Integrated steady burn and Strobe split mode
● Comes with dash mount switch and plug with on/off switch and flash pattern toggle
● Quick disconnect waterproof connectors allows for easy switching between temporary and permanent switch.

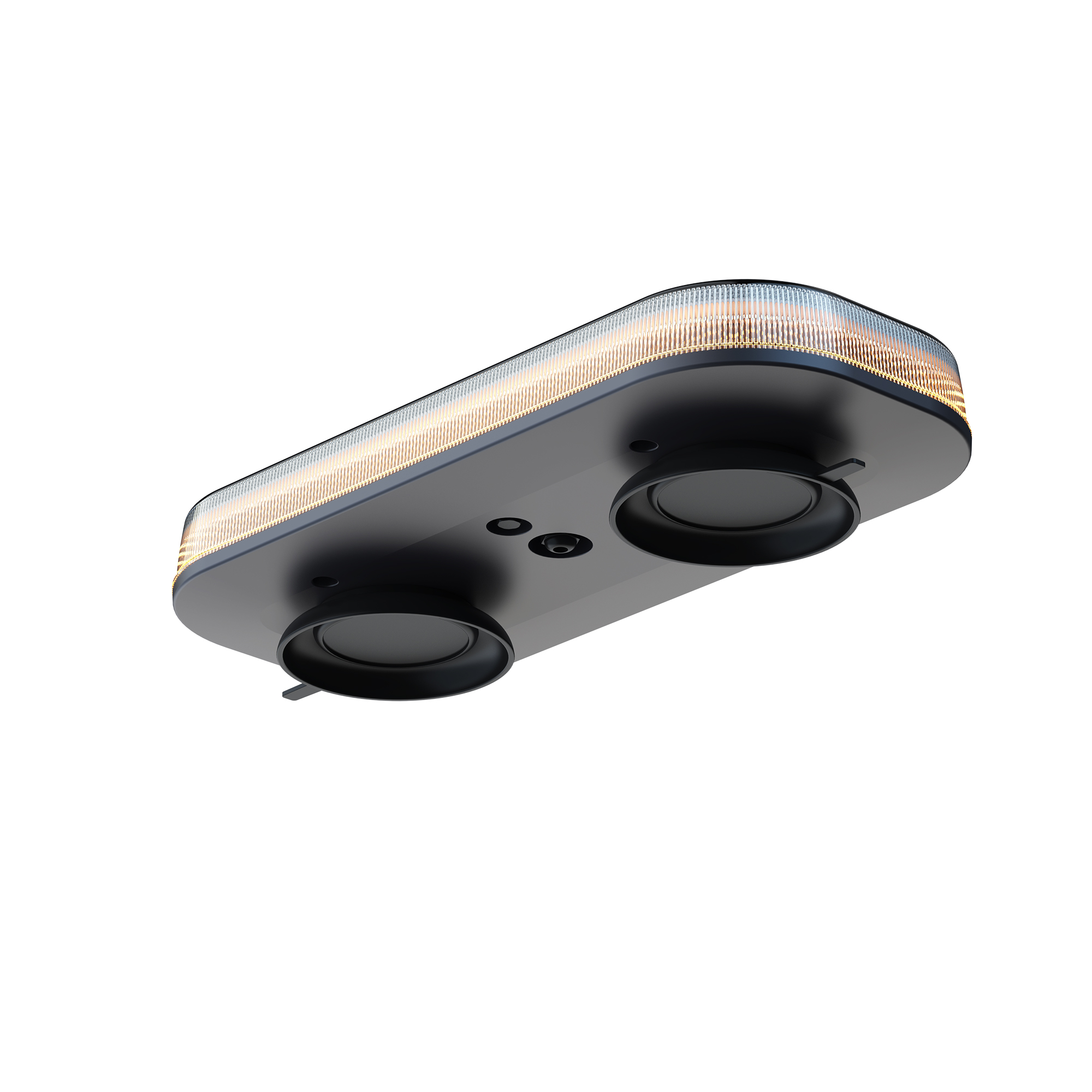

● Rugged magnetic feet and permanent stud mount included
● Weatherproof IP69K rated
● 5 year warranty
● 1x LED Light Bar
● 2 x Magnetic Mount
● 1x Permanent Mount Plate
● 1x Cigarette Lighter Switch
● 1x Dash Mount Switch
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.
Download User ManualIf you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
ARC Lighting provides a 5 (Five) year warranty on all BUILTBRIGHT® products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
