Power: 20 Watts
Current Draw@12V DC: 5 Amps
Lumen Output: 2,000 lumens
Color Temp (CCT): 6,000K/Yellow
LED Color: White, Selected Yellow
BEAM Pattern: Driving + DRL
IP Rating: IP67
Voltage: 9-36V
Operating Temperature: -40°F to + 185°F
Dim: 5” L x 1.5” H x 2.5” D
Cable Length: 11 Inch
Connector(s): DT
Warranty: 5 Year Warranty

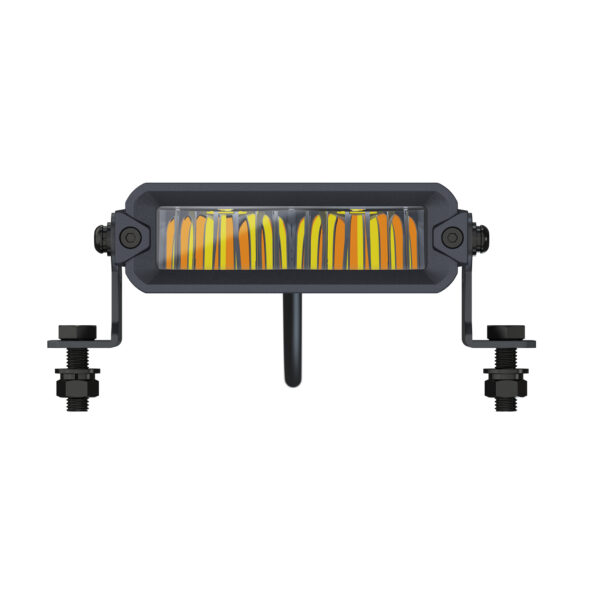

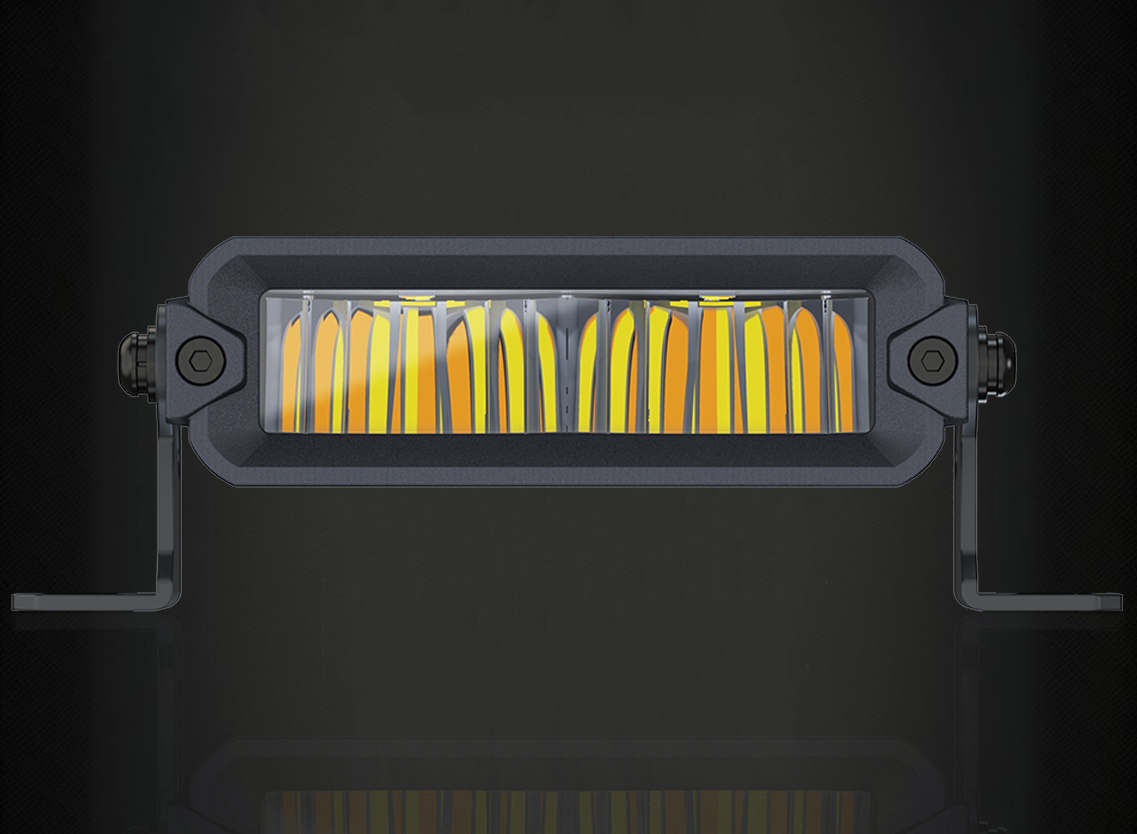

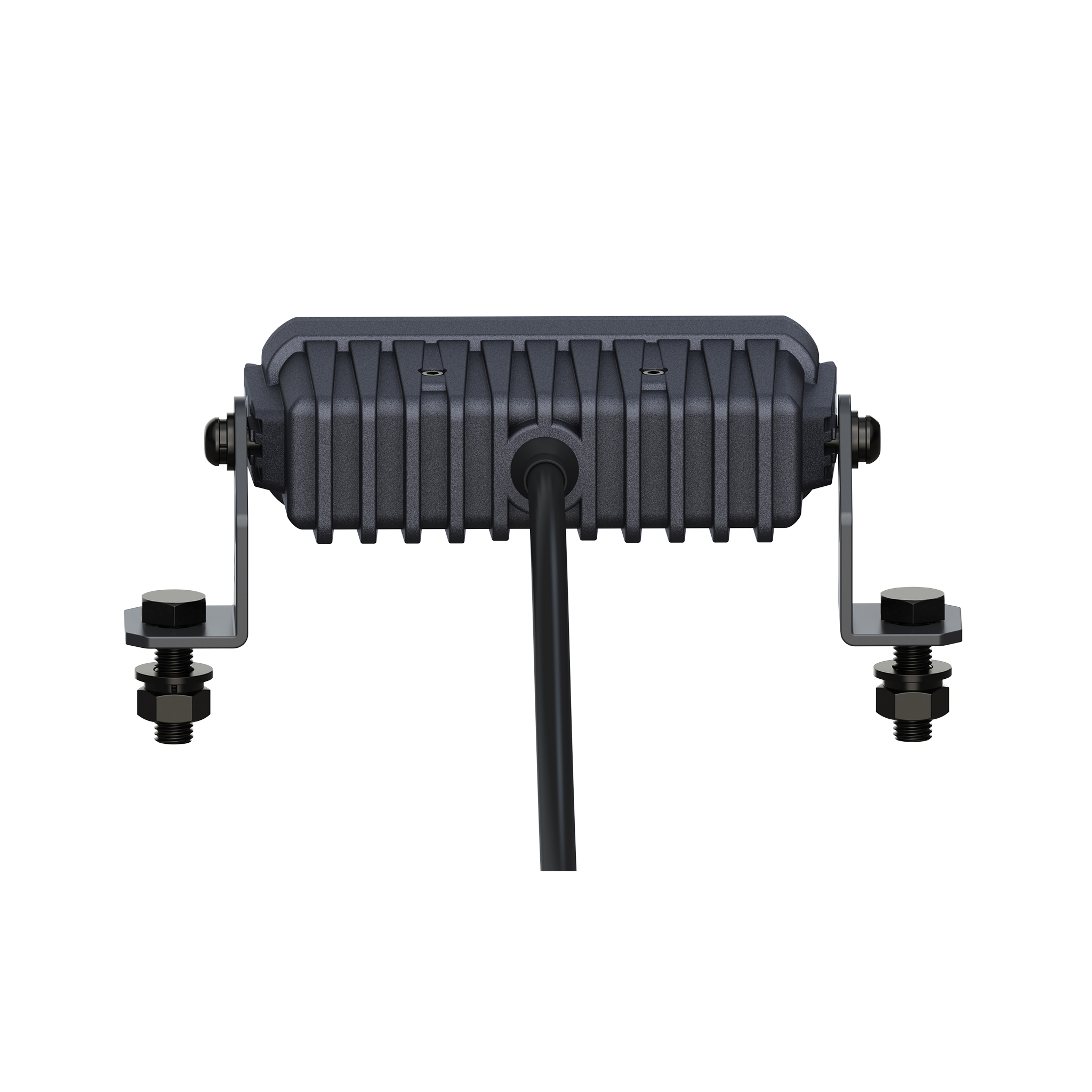

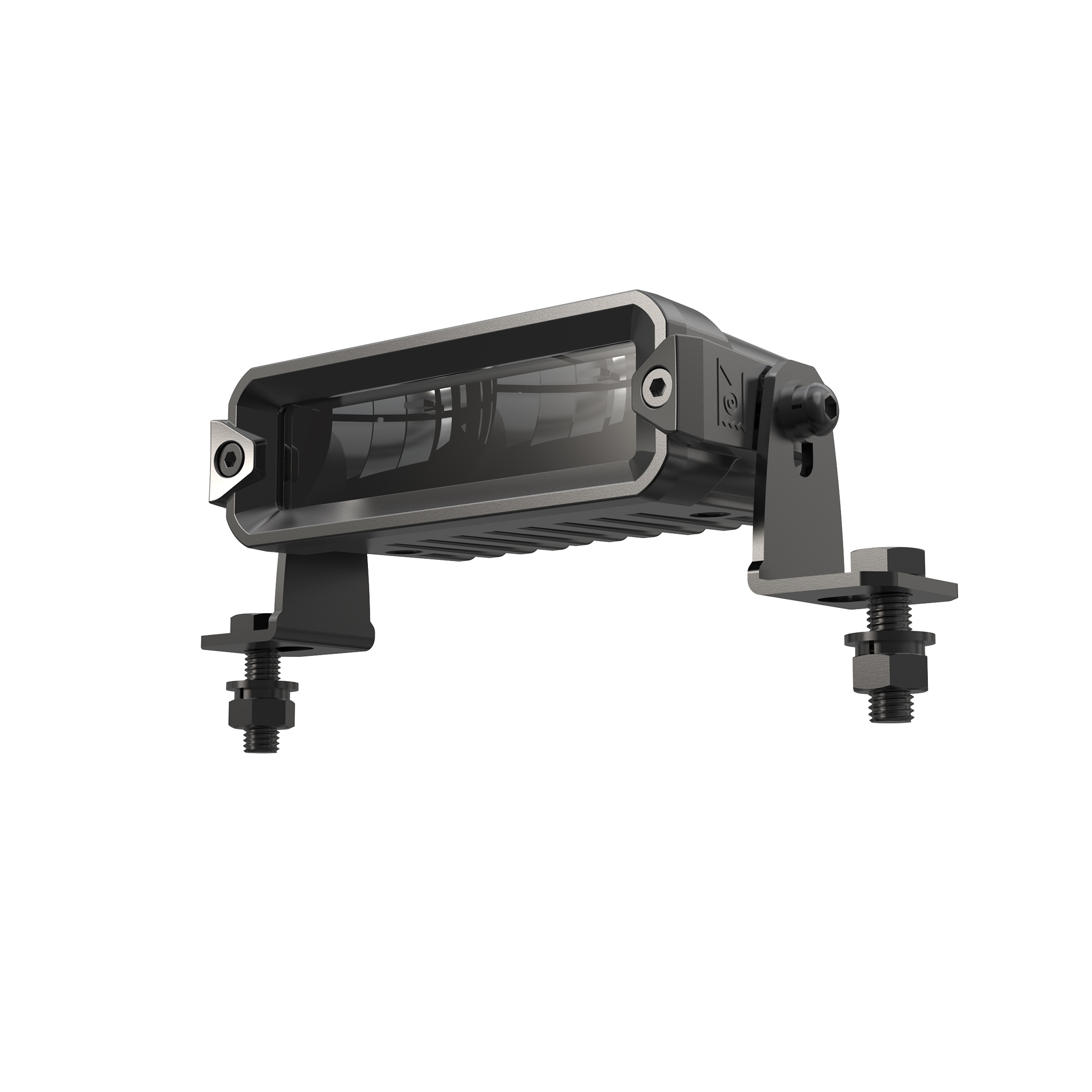

Xtreme Bar, 5″ Driving Light Bar, Dual Color White/Yellow(2 EA) – 6403D
MSRP $261.99 USD
The all-new Xtreme Bar redefines light bars with unmatched versatility and extreme performance. Available in 4″, 5″, 8″, 12″, and 20″ sizes, these compact yet powerful bars fit where traditional light bars can’t—from tight grille spaces to bumper openings.
Designed for seamless factory integration, the Xtreme Bar delivers a clean, OEM-style look with the power of a full-sized auxiliary setup. Custom-fit brackets ensure a secure, no-drill install, making mounting effortless. Its modular design lets you stack, extend, and customize for any setup, whether for daily driving or off-road adventures.
With dual-color technology, switch between crisp white for driving and yellow or amber for fog. The strobe mode adds extra visibility for work zones, emergencies, or off-road chase.
Small in size, massive in performance, and built for factory integration—the Xtreme Bar is the ultimate lighting upgrade.
● A kit of two (2) high performance street legal driving light bars
● Five inch (5″) compact size
● Compliant with SAE J581 driving light standards
● 2,000 lumens of street legal driving beam
● Vehicle specific no drill grille brackets available
● Side mount bracket included
● Compatible with 12V, 24V and 36V DC power systems
● Weatherproof IP67 rating ensures protection against harsh environmental conditions
● 2 x LED Light Bar

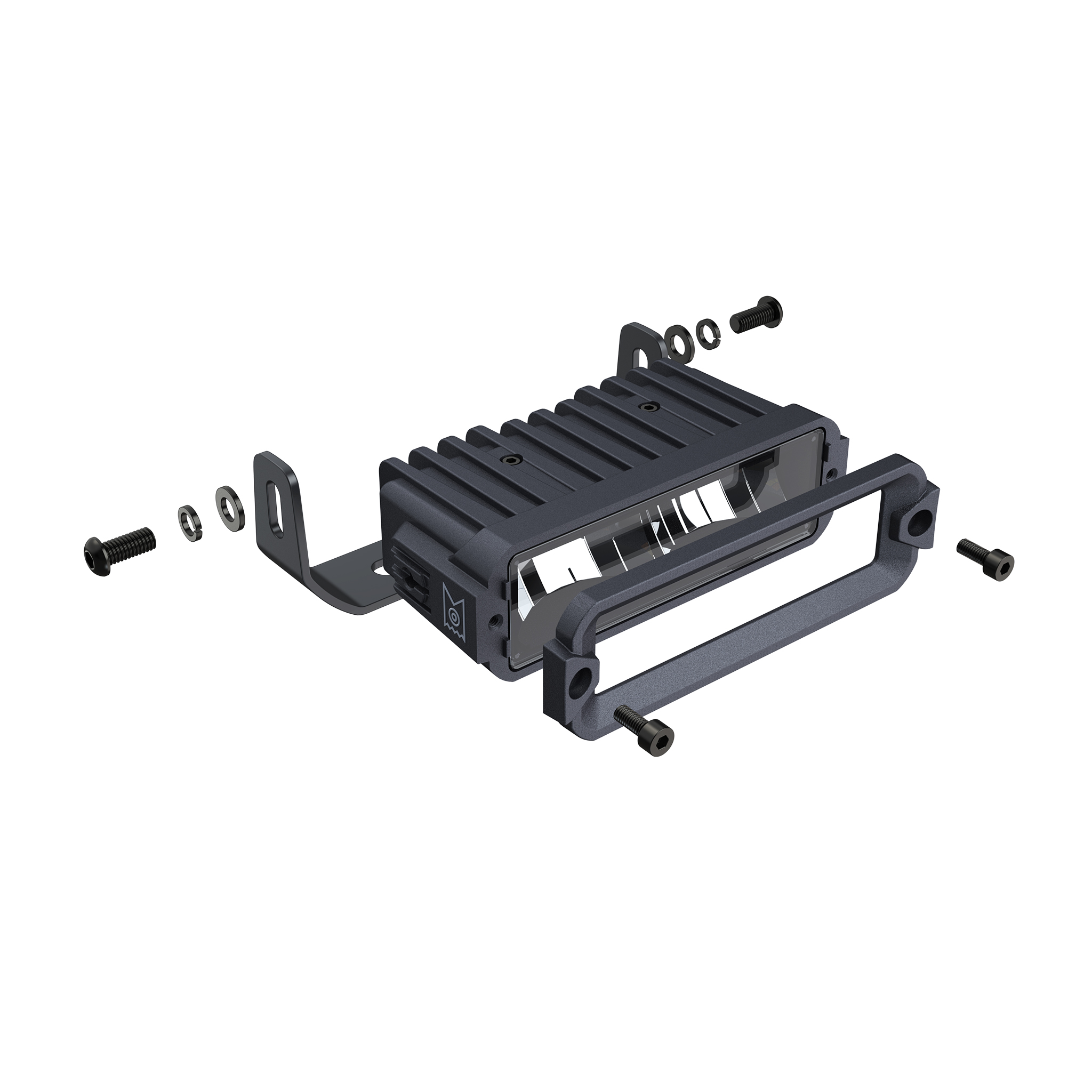

● 4 x Side Mount Bracket and Hardware
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED light box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.
Download User ManualIf you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
ARC Lighting provides a Five (5) year warranty on all Tiny Monster™ Lights products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
