Power: 45 Watts
Current Draw@12V DC: 5 Amps
Lumen Output: 3,400 lumens
LED Count: 4 LEDs (Driving Light); 24 LEDs (Halo Ring)
LED Emitter: AFL3 modular chip
Color Temp (CCT): 2,600K
LED Color: Yellow
Lens Color: Clear
Material Type (Lens): Ultra strong UV stabilized polycarbonate lens
Material Type (Body): Cast Aluminum Housing – Powder Coated Black
Material Type (Bracket & Hardware): 304 Stainless Steel
BEAM Pattern: Driving
Compliance: SAE J581
EMC: CISPR-25 CLASS 3
IP Rating: IP69K
Voltage: 10-48V
Operating Temperature: -40°F to + 185°F
Dim: 7.8” L x 1.68” H x 2.62” D
Cable Length: 11 Inch
Connector(s): DT
Warranty: 5 Year Warranty

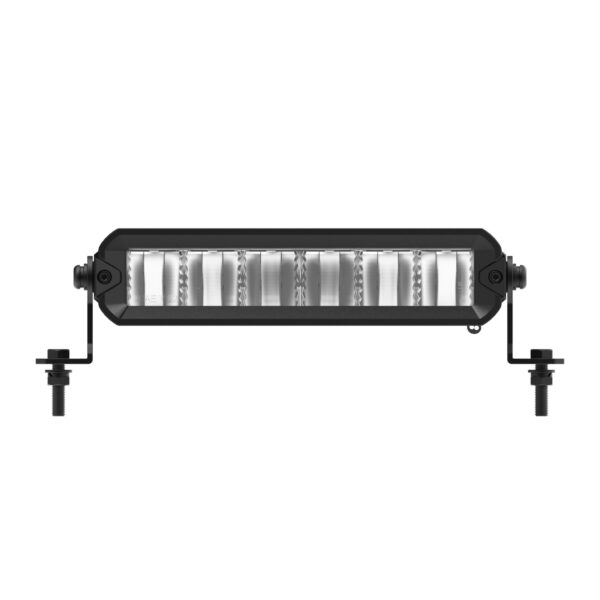

Xtreme Bar, 8″ Driving Light Bar Yellow, For Toyota Tundra (2 EA) – 6402YT
MSRP $331.99 USD
The all-new Xtreme Bar redefines light bars with unmatched versatility and extreme performance. Available in 4″, 5″, 8″, 12″, and 20″ sizes, these compact yet powerful bars fit where traditional light bars can’t—from tight grille spaces to bumper openings.
Designed for seamless factory integration, the Xtreme Bar delivers a clean, OEM-style look with the power of a full-sized auxiliary setup. Custom-fit brackets ensure a secure, no-drill install, making mounting effortless. Its modular design lets you stack, extend, and customize for any setup, whether for daily driving or off-road adventures.
With dual-color technology, switch between crisp white for driving and yellow or amber for fog. The strobe mode adds extra visibility for work zones, emergencies, or off-road chase.
Small in size, massive in performance, and built for factory integration—the Xtreme Bar is the ultimate lighting upgrade.
● A kit of two (2) high performance street legal driving light bars
● Eight inch (8″) compact size
● Compliant with SAE J581 driving light standards
● 3,400 lumens of street legal driving beam
● Flexible mounting options for versatile installation
● Dual color fog light option avaialbe in four inch (4″) option
● Driving beam available in four inch (4″) and eight inch (8″) options
● Vehicle specific no drill grille brackets available
● Universal “U” mount and side mount bracket included
● Compatible with 12V, 24V and 48V DC power systems
● Weatherproof IP69K rating ensures protection against harsh environmental conditions
● 2 x LED Light Bar
● 4 x Side Mount Bracket and Hardware
● 2 x DT Pigtail
Please feel free to make use of the installation instructions below to assist you. We have created some installation examples to showcase the recommended steps should you experience that usual problems during your install.
DOWNLOAD INSTALLATION GUIDEIf you have further questions or need technical assistance, please call one of our knowledgeable tech support experts at (888) 608-2220
ARC Lighting provides a Five (5) year warranty on all Tiny Monster Grille™ Lights products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
