Power: 60 Watts
Current [email protected] DC: 4.4 Amps
Lumen Output: 4,700 LM
LED Count: 6 OSRAM P8 LED
LED Color: Amber
BEAM Pattern: Combo
IP Rating: IP69K
Voltage: 9-36V
Operating Temperature: -40°F to + 185°F
Dim: 12” L x 1.5” H x 1.8” D
Cable Length: 11 Inch
Connector(s): DT
Warranty: 5 Year Warranty
Xtreme Bar, 12″ Driving Light Bar, Combo Beam, Yellow – 62102
MSRP $152.99 USD
The all-new Xtreme Bar redefines light bars with unmatched versatility and extreme performance. Available in 4″, 5″, 8″, 12″, and 20″ sizes, these compact yet powerful bars fit where traditional light bars can’t—from tight grille spaces to bumper openings.
Designed for seamless factory integration, the Xtreme Bar delivers a clean, OEM-style look with the power of a full-sized auxiliary setup. Custom-fit brackets ensure a secure, no-drill install, making mounting effortless. Its modular design lets you stack, extend, and customize for any setup, whether for daily driving or off-road adventures.
With dual-color technology, switch between crisp white for driving and yellow or amber for fog. The strobe mode adds extra visibility for work zones, emergencies, or off-road chase.
Small in size, massive in performance, and built for factory integration—the Xtreme Bar is the ultimate lighting upgrade.
● A kit of one (1) high performance street legal driving light bars
● Twelve inch (12″) compact size
● Compliant with SAE J581 driving light standards
● 4,700 lumens of street legal driving beam
● Flexible mounting options for versatile installation
● Amber color (62102) and White color (62101) option avaialbe
● Vehicle specific no drill grille brackets available
● Side and bottom mount bracket included
● Compatible with 12V, 24V and 36V DC power systems
● Weatherproof IP69K rating ensures protection against harsh environmental conditions
● 1 x LED Light Bar
● 2 x Side Mount Bracket and Hardware
● 2 x Bottom Mount Bracket and Hardware
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.
Download User ManualIf you have further questions or need technical assistance, please call one of our knowledgeable tech support experts at (888) 608-2220

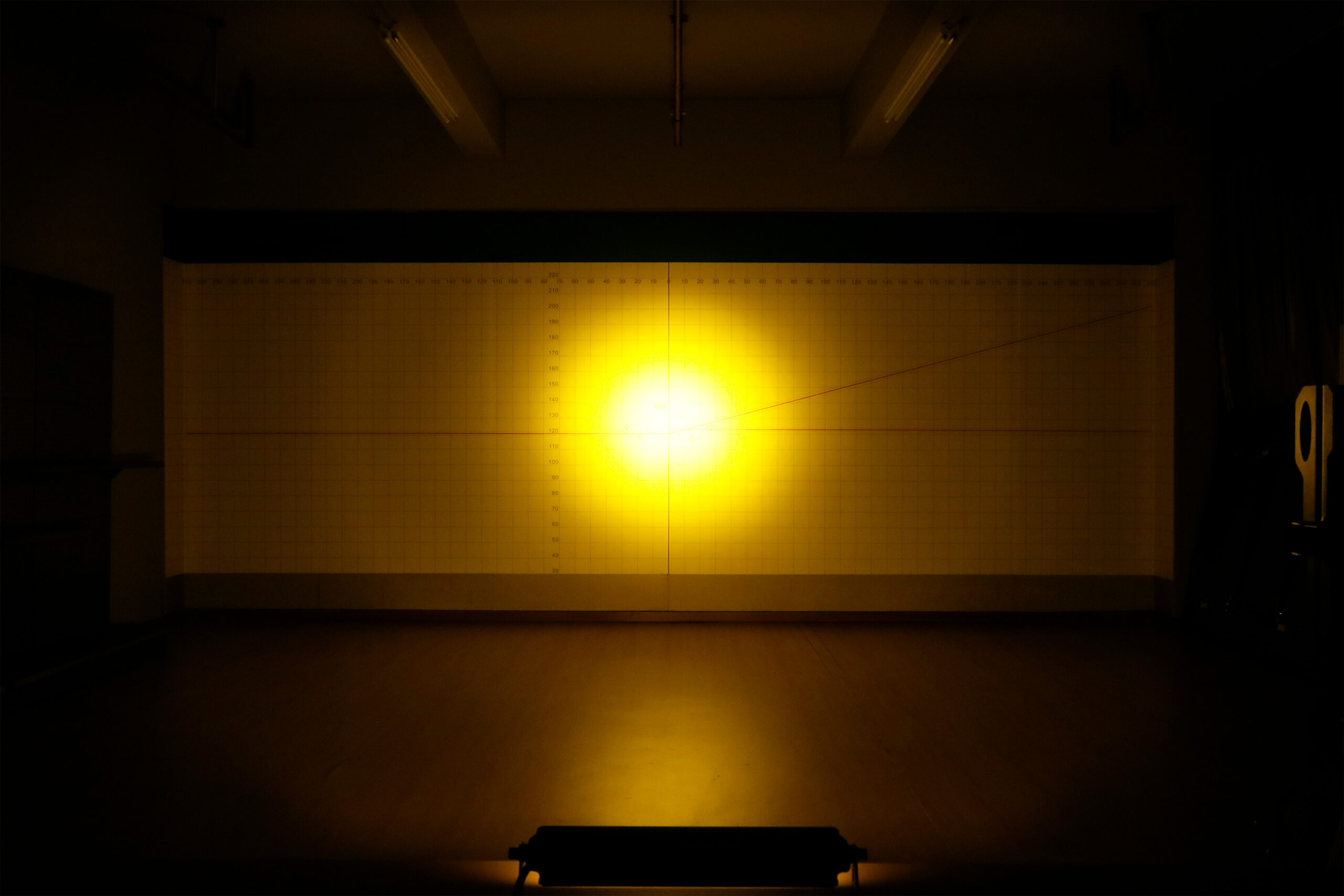

What is the beam pattern difference between the offroad beam and the street legal driving beam?
* Typical offroad beam is a combination of spot beam and flood beam. The spot beam gives a long-range round spot beam and the flood beam will light up the surrounding areas. The beam pattern is designed to offer maximum range and width for off-road driving conditions. It will not be safe to use on the highway.
* The street legal driving beam is designed to be used on the highway to compliment your high beam lights. Legal high beam have strict restrictions on maximum brightness on the top and bottom to minimize possible glare. High beam driving lights can be turned on whenever your high beam headlights are allowed to be turned on.
Are both side and bottom mounts included?
Yes. Two side and two bottom mounting brackets are included in the package. You can choose the preferred mounting options for your installation. Please refer to the installation manual here: Install Manual 62133
Is the wiring harness included?
The wiring harness IS NOT included. You can use any standard wiring harness that allows for 250W or 20 Amp power or you can purchase our wiring harness SKU 84001.
Are there any other length bars available?
We only offer 20” and 30″ bars right now, which are the most popular length that fits in most factory and custom bumpers and grills. We will expand the product line to include other sizes in the future.
Where do I find installation instructions and other technical information?
One of the best resources for installers to find updated information on installation and technical data is in our SUPPORT CENTER.
There you will find the Installation Instructions and Trouble Shooting Guide
We also have the Knowledge Base that provides you with the latest technology developments in the LED lighting industry.
ARC Lighting provides a FIve (5) year warranty on all light bar products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
