|Light Output||7,500 Lumens|
|Power||120W @ 13.6V DC|
|Current||8.8A @ 13.6V DC|
|Voltage||9 - 36V DC|
|Dimensions||1.7” x 22.0” x 1.8”|
|Beam Pattern||Spot/Flood Combo|

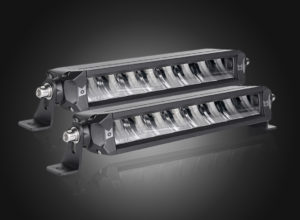

Xtreme Series Rally Bar, 20″ Single Row, Spot/Flood Combo – 62133
MSRP $174.99 USD
Crazy powerful and super versatile, our new Xtreme Series Rally Bar off-road light bars bring the best of spot and flood beams into one high-performance LED light bar. Xtreme Series Rally Bars project light amazing distances and widths to illuminate the darkness and ratchet up your trailblazing potential. The impeccable build quality with screwless front frames protect the lights from the harshest of elements while the low profile design and two mounting options make installation a cinch.
Versatile mounting options with available all-in-one high beam / fog / strobe light
SAE certified for use on any roadway in the USA
Patented optics, low profile chassis and no-drill wiring harness
Power that surpasses most off-road light bars
1 x LED Light Bar
Side and Bottom Mounting Brackets
Please refer to the detailed user manual below to assist you during your installation. It is the same material that is in the LED bulb box packaging.
We have created some installation examples to showcase the recommended steps you should take to make your upgrade a clean and fast install.Download User Manual
If you have further questions or need technical assistance please call one of our knowledgeable tech support experts at (888) 608-2220 We are open Monday – Friday 9:00 a.m. – 5:00 p.m. CST
We can answer many of the common questions that arrive during a light upgrade.
What is the beam pattern difference between the offroad beam and the street legal driving beam?
Are both side and bottom mounts included?
Is the wiring harness included?
Are there any other length bars available?
Where do I find installation instructions and other technical information?
ARC Lighting provides a 2 (two) year warranty on all products, for manufacturing defects or product failure. If you have an issue with any product, please report it to our authorized dealer or distributor where your product(s) were purchased. When directed to do so after you have spoken to the purchasing location you may file your claim with us directly using the online form below. If your product is determined to be defective in material or workmanship, ARC Lighting will issue an RMA number.
After speaking to our technical support, please click here to file a warranty claim
Read the ARC LIGHTING WARRANTY POLICY
Monday – Friday 9 to 5 pm
